COOLERMASTER MASTERBOX COOLERMASTER694 ATX CASE WITH T.G

$189.00 SGD

This product is currently sold out.

Please fill in the form below if you'd like to be notified when it becomes available.

Ordering this product may require 5-10 working days.

Customer Reviews

MODEL NUMBER MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG)
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Tempered Glass, Mesh
MATERIALS - SIDE PANEL Curved Tempered Glass, Steel
DIMENSIONS (L X W X H) Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX
EXPANSION SLOTS 7
5.25" DRIVE BAYS 2
2.5" / 3.5" DRIVE BAYS (COMBO) 6 (3x drive cages)
I/O PANEL 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - FRONT 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
PRE-INSTALLED FANS - REAR 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
FAN SUPPORT - TOP 3x 120mm, 2x 140mm
FAN SUPPORT - FRONT 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
FAN SUPPORT - REAR 1x 120mm
FAN SUPPORT - BOTTOM 2x 120/140mm (bracket needed)
RADIATOR SUPPORT - TOP 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
RADIATOR SUPPORT - FRONT 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
RADIATOR SUPPORT - REAR 120mm
CLEARANCE - CPU COOLER 171mm
CLEARANCE - GFX 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
CLEARANCE - PSU 276mm, 160mm (drive cage rear position)
POWER SUPPLY SUPPORT Bottom mount, ATX PS2
DUST FILTERS Top, Front, Bottom
EAN CODE 4719512075036
UPC CODE 884102047527
SERIES MasterBox Series
SIZE Mid Tower
CABLE ROUTING
27-29mm









Description







MODULAR DRIVE CAGES

3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.



Modular Drive Cages

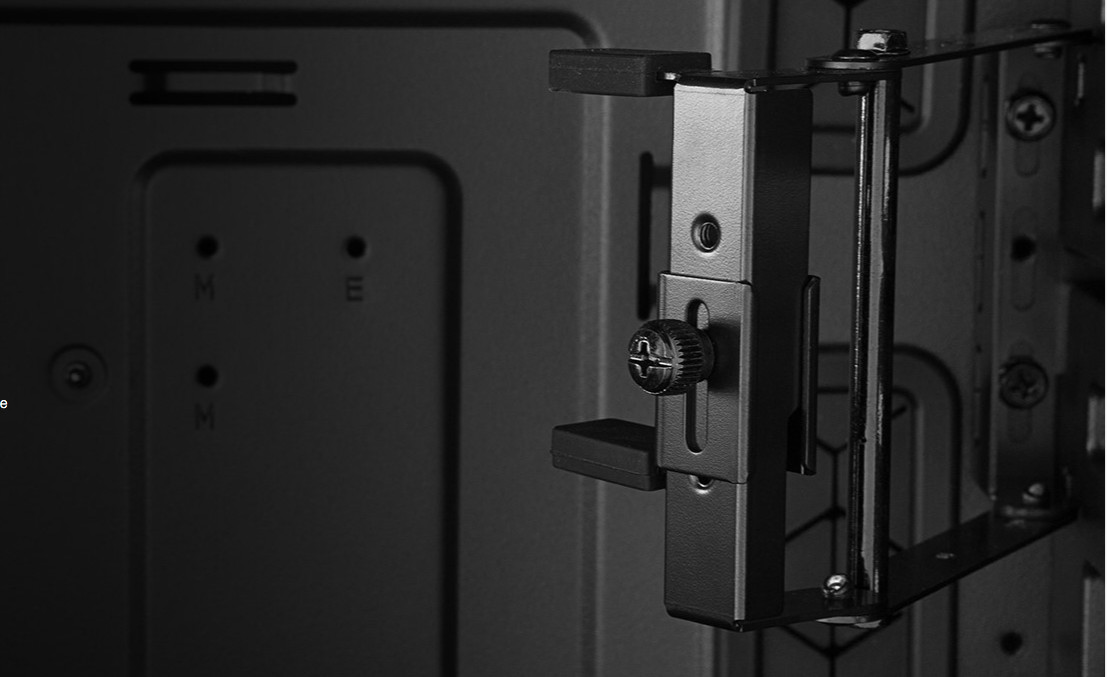

GRAPHICS CARD STABILIZER

Graphics cards installed within the case are reinforced by an arm, ensuring the safe delivery and transportation of systems.

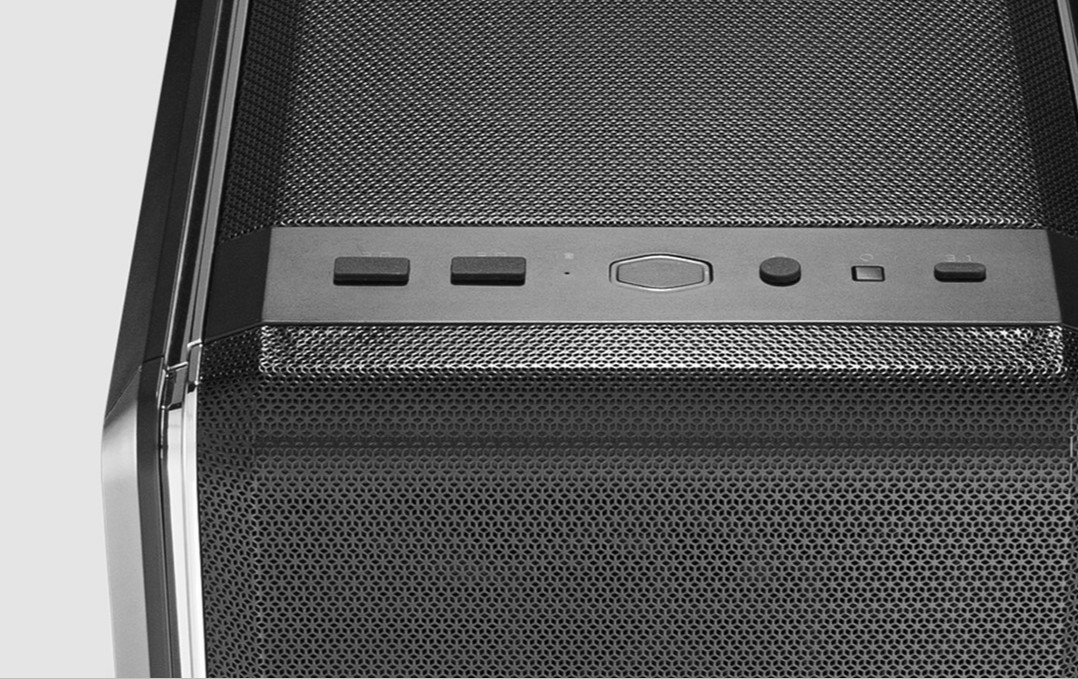

RICH CONNECTIVITY (I/O PANEL)

The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.



MASSIVE STORAGE SUPPORT

Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.

Massive Storage Support
